Lab1: Introduction to Python

# Variables and Basic Data Types
# Python automatically determines the type based on the value assigned

# Numbers
integer_var = 42
float_var = 3.14159
complex_var = 3 + 4j

# Strings
name = "Mechanical Engineer"
course = 'MECH 529'

# Boolean
is_python_awesome = True

# print the result: the 'f' before the string enables f-string formatting for variable substitution
print(f"Integer: {integer_var}, type: {type(integer_var)}")
print(f"Float: {float_var}, type: {type(float_var)}")
print(f"Complex: {complex_var}, type: {type(complex_var)}")
print(f"String: {name}, type: {type(name)}")
print(f"Boolean: {is_python_awesome}, type: {type(is_python_awesome)}")

# Lists - ordered, mutable collections (like MATLAB cell arrays)
forces = [100, 250, 75, 300]  # List of forces in Newtons
materials = ["Steel", "Aluminum", "Titanium", "Carbon Fiber"]

print(f"Forces: {forces}")
print(f"First force: {forces[0]} N")  # Python uses 0-based indexing
print(f"Last force: {forces[-1]} N")  # Negative indexing from the end

# Adding elements
forces.append(150)  # Add to end
print(f"After adding 150 N: {forces}")

# List slicing (very powerful!)
print(f"First three forces: {forces[0:3]}")  # Elements 0, 1, 2
print(f"All forces: {forces[:]} or {forces}")

# Dictionaries - key-value pairs (like MATLAB structures)
material_properties = {
    "Steel": {"density": 7850, "yield_strength": 250},  # kg/m³, MPa
    "Aluminum": {"density": 2700, "yield_strength": 70},
    "Titanium": {"density": 4500, "yield_strength": 880}
}

print("Material Properties:")
for material, props in material_properties.items():
    density = props["density"]
    strength = props["yield_strength"]
    print(f"  {material}: ρ = {density} kg/m³, σy = {strength:.0f} MPa")

# Control Flow: if/else statements
force = 500  # Newtons, you can change this value to test the if/else statements
max_allowable = 400  # Newtons

if force > max_allowable:
    safety_factor = force / max_allowable
    print(f"⚠️  Force {force} N exceeds limit of {max_allowable} N")
    print(f"   Safety factor: {safety_factor:.2f}")
elif force == max_allowable:
    print(f"✓ Force exactly at limit: {force} N")
else:
    margin = max_allowable - force
    print(f"✓ Force {force} N is safe (margin: {margin} N)")

# Loops: for and while
print("For loop example - analyzing different loads:")
loads = [100, 250, 75, 450, 200]  # Newtons

for i, load in enumerate(loads):  # enumerate gives both index and value
    status = "SAFE" if load < 400 else "OVER LIMIT"
    print(f"  Load {i+1}: {load} N - {status}")

print("\nWhile loop example - finding critical load:")
load = 100
increment = 50
limit = 400

while load <= limit:
    print(f"  Testing load: {load} N")
    load += increment

print(f"  Critical load exceeded at: {load} N")

# Functions - essential for reusable codes
def calculate_stress(force, area):
    """
    This function calculates stress given force and area.

    Parameters:
    force (float): Applied force in Newtons
    area (float): Cross-sectional area in m²

    Returns:
    float: Stress in Pascals
    """
    if area <= 0:
        raise ValueError("Area must be positive")

    stress = force / area
    return stress

def safety_check(stress, yield_strength, safety_factor=2.0):
    """Check if design meets safety requirements"""
    allowable_stress = yield_strength / safety_factor
    is_safe = stress <= allowable_stress  # True if stress is less than or equal to allowable

    return {
        "is_safe": is_safe,
        "stress": stress,
        "allowable": allowable_stress,
        "utilization": stress / allowable_stress
    }

# Example usage
force = 10000  # N
diameter = 0.02  # m
area = 3.14159 * (diameter/2)**2  # m²

stress = calculate_stress(force, area)
result = safety_check(stress, 250e6)  # Steel yield strength

print(f"Engineering Analysis:")
print(f"  Applied force: {force} N")
print(f"  Cross-sectional area: {area*1e6:.1f} mm²")
print(f"  Calculated stress: {stress/1e6:.1f} MPa")
print(f"  Safety status: {'✓ SAFE' if result['is_safe'] else '⚠️ UNSAFE'}")

# Error handling with try/except blocks
def safe_divide(a, b):
    """Safely divide two numbers with error handling"""
    try:
        result = a / b
        return result
    except ZeroDivisionError:
        print(f"Error: Cannot divide {a} by zero!")
        return None
    except TypeError:
        print(f"Error: Invalid input types - need numbers, got {type(a)} and {type(b)}")
        return None

# Test error handling
print("Testing error handling:")
print(f"10 / 2 = {safe_divide(10, 2)}")
print(f"10 / 0 = {safe_divide(10, 0)}")
print(f"'10' / 2 = {safe_divide('10', 2)}")

# Common debugging technique: assertions
def calculate_beam_deflection(force, length, E, I):
    """Calculate beam deflection with input validation"""
    assert force > 0, "Force must be positive"
    assert length > 0, "Length must be positive"
    assert E > 0, "Young's modulus must be positive"
    assert I > 0, "Moment of inertia must be positive"

    # Simply supported beam, center load: δ = FL³/(48EI)
    deflection = (force * length**3) / (48 * E * I)  # '**' is the exponentiation operator in Python (length cubed)
    return deflection

# Test with valid inputs
try:
    # Steel beam, you may change the values to negative in the following line to oberserve the output
    delta = calculate_beam_deflection(1000, 2, 200e9, 8.33e-6)
    print(f"Beam deflection: {delta*1000:.2f} mm")
except AssertionError as e:
    print(f"Input validation failed: {e}")

# Import necessary libraries
import numpy as np
import matplotlib.pyplot as plt
#import math

""""""
# Set up matplotlib for inline plotting,
# "%" is Jupyter magic command:
# a special command that provides convenient shortcuts for common operations.
# it is not a standard part of Python, but only for Jupyter notebooks,
# which is how this lab is written with
""""""
%matplotlib inline

# Basic calculations
result1 = -1 - 1
result2 = 2**2
print(f"-1 - 1 = {result1}")
print(f"2^2 = {result2}")

# Create 1D arrays (equivalent to MATLAB row vectors)
x1 = np.array([1, 2, 3])  # Creates a 1D array with 3 elements
x2 = np.array([2j, 1+4j, np.pi, -1])  # Complex numbers and pi
x3 = np.array([1+1, 2+2, 3+3])  # Array with calculations

print("x1:", x1)
print("x2:", x2)
print("x3:", x3)

# Create 2D arrays (equivalent to MATLAB matrices)
y1 = np.array([[1, 2, 3], [4, 5, 6]])  # 2x3 matrix
y2 = np.array([[1, 2, 3], [4, 5, 6]])  # Same as y1
y3 = np.array([[1, 2, 3.0], [-4.0, 2-5, 6.00]])  # 2x3 matrix with mixed operations

print("y1:")
print(y1)
print("\ny2:")
print(y2)
print("\ny3:")
print(y3)

# Basic Matrix Operations
A = np.array([[1, 2], [3, 4]])
B = np.array([[2, 0], [1, 3]])
vector = np.array([1, 2])

print("Matrix A:")
print(A)
print("\nMatrix B:")
print(B)

# Matrix multiplication (use @ operator)
print("\nA @ B (matrix multiplication):")
print(A @ B)

# Element-wise multiplication (use * operator)
print("\nA * B (element-wise multiplication):")
print(A * B)

# Matrix-vector multiplication
print("\nA @ vector:")
print(A @ vector)

# Transpose
print("\nA transpose (A.T):")
print(A.T)

# Matrix inverse and determinant
print(f"\nDeterminant of A: {np.linalg.det(A):.2f}")
A_inv = np.linalg.inv(A)
print(f"Inverse of A:")
print(A_inv)

# Matrix eigenvalues and eigenvectors
eigvals, eigvecs = np.linalg.eig(A)
print(f"\nEigenvalues of A:")
print(eigvals)
print("Eigenvectors of A (columns):")
print(eigvecs)

# Array operations
a = np.array([4, 9])
y = np.sqrt(a)  # Square root
z = np.array([np.max(a), np.min(a), np.mean(a)])  # Max, min, mean

print(f"a = {a}")
print(f"sqrt(a) = {y}")
print(f"[max, min, mean] = {z}")
print(f"Size of a: {a.shape}")

# Arc tangent
angle = np.arctan(1)  # arctan(1) = π/4
print(f"arctan(1) = {angle} radians = {np.degrees(angle)} degrees")

# Real and imaginary parts of complex numbers
complex_num = 3 + 4j
real_part = np.real(complex_num)
imag_part = np.imag(complex_num)
print(f"Complex number: {complex_num}")
print(f"Real part: {real_part}")
print(f"Imaginary part: {imag_part}")

# Random numbers
random_num = np.random.rand()  # Single random number between 0 and 1
random_array = np.random.rand(3, 3)  # 3x3 array of random numbers
print(f"Random number: {random_num}")
print(f"Random 3x3 array:\n{random_array}")

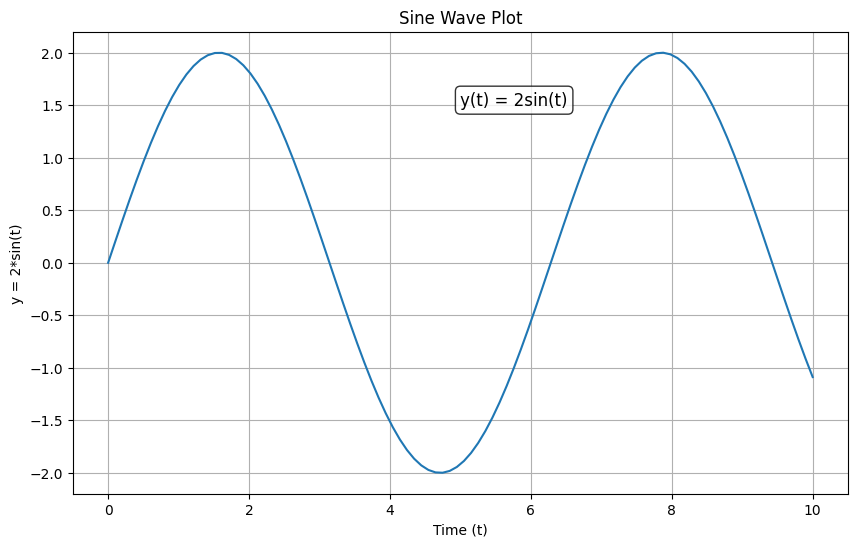

# Create time array and plot sine function
t = np.linspace(0, 10, 100) # Creates exactly 100 points from 0 to 10 (inclusive)
y = 2 * np.sin(t)

# Create a new figure with a specific size (10 inches wide by 6 inches tall)
plt.figure(figsize=(10, 6))
plt.plot(t, y)
# plt.plot(t,y,'b-', linewidth=2)
plt.xlabel('Time (t)')
plt.ylabel('y = 2*sin(t)')
plt.title('Sine Wave Plot')
# Add a text annotation to the plot showing the equation
plt.text(5, 1.5, r'y(t) = 2sin(t)', fontsize=12,
         bbox=dict(boxstyle="round,pad=0.3", facecolor="white", alpha=0.8))
plt.grid(True)

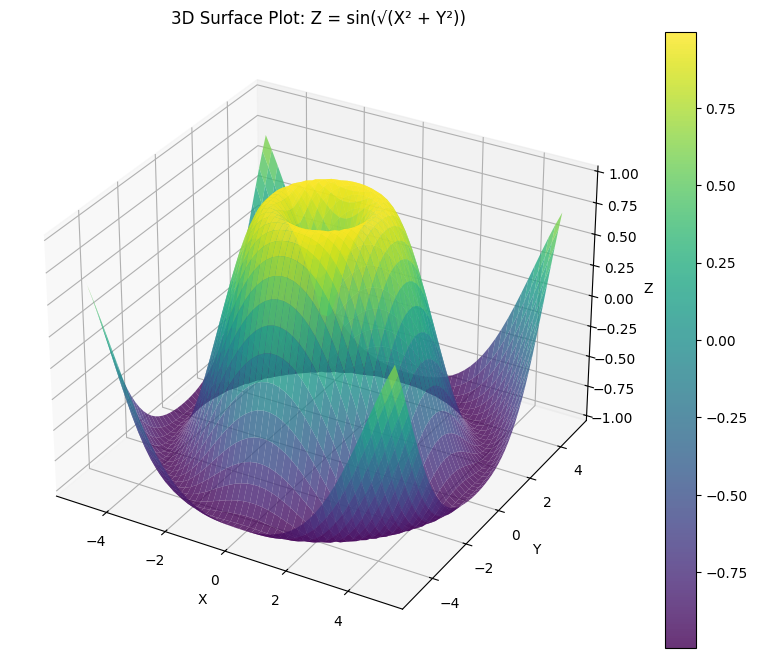

# 3D plotting example
# Import 3D plotting toolkit for matplotlib (required for 3D surface plots)
from mpl_toolkits.mplot3d import Axes3D

fig = plt.figure(figsize=(10, 8)) # Create a new figure with a specific size
ax = fig.add_subplot(111, projection='3d')  # Add a 3D subplot to the figure

# Create meshgrid for 3D surface
x = np.linspace(-5, 5, 50)
y = np.linspace(-5, 5, 50)
X, Y = np.meshgrid(x, y)
Z = np.sin(np.sqrt(X**2 + Y**2))

# Create 3D surface plot
# Plot the 3D surface; cmap sets the color map, alpha sets transparency
# cmap='viridis' uses a blue-green-yellow color gradient for the surface
# alpha=0.8 makes the surface slightly transparent (1.0 is fully opaque)
surf = ax.plot_surface(X, Y, Z, cmap='viridis', alpha=0.8)
ax.set_xlabel('X')
ax.set_ylabel('Y')
ax.set_zlabel('Z')
ax.set_title('3D Surface Plot: Z = sin(√(X² + Y²))')
# Add color bar to indicate the mapping of colors to Z values
plt.colorbar(surf)

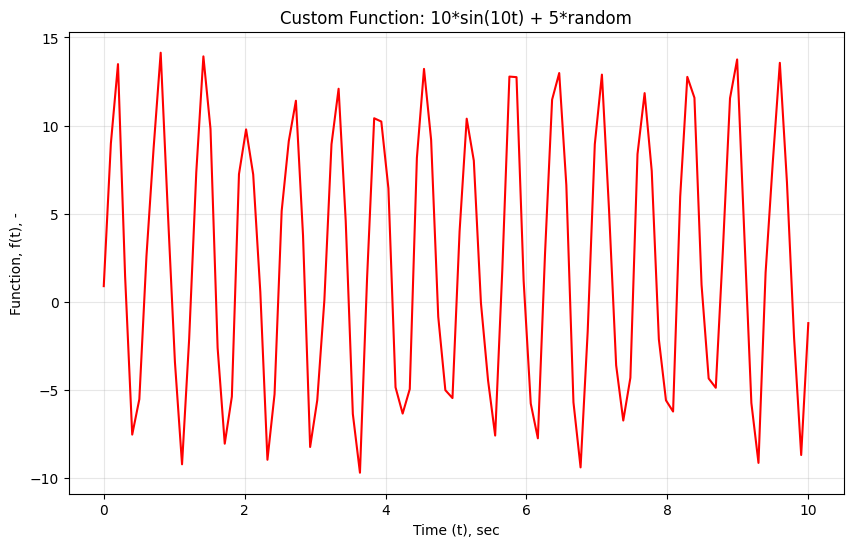

def ME529_fun(fxn_input):
    """Custom function that combines sine wave with random noise"""
    return 10 * np.sin(fxn_input * 10) + 5 * np.random.rand(*fxn_input.shape)

# Use the custom function
y_529 = ME529_fun(t)

plt.figure(figsize=(10, 6))
plt.plot(t, y_529, 'r-', linewidth=1.5)
plt.xlabel('Time (t), sec')
plt.ylabel('Function, f(t), -')
plt.title('Custom Function: 10*sin(10t) + 5*random')
plt.grid(True, alpha=0.3)
plt.show()

# Method 1: Strategic Print Statements and Logging

def calculate_trajectory(v0, angle_deg, g=9.81):
    """Calculate projectile trajectory with debugging prints"""
    print(f"DEBUG: Input parameters - v0={v0}, angle={angle_deg}°, g={g}")

    # Convert angle to radians
    angle_rad = np.radians(angle_deg)
    print(f"DEBUG: Angle in radians: {angle_rad:.4f}")

    # Calculate components
    v0x = v0 * np.cos(angle_rad)
    v0y = v0 * np.sin(angle_rad)
    print(f"DEBUG: Initial velocities - vx={v0x:.2f}, vy={v0y:.2f}")

    # Time of flight
    t_flight = 2 * v0y / g
    print(f"DEBUG: Time of flight: {t_flight:.2f} seconds")

    # Range
    range_x = v0x * t_flight
    print(f"DEBUG: Calculated range: {range_x:.2f} meters")

    return range_x, t_flight

# Test with debugging output
result_range, result_time = calculate_trajectory(50, 45)
print(f"\nFINAL RESULT: Range = {result_range:.1f} m, Flight time = {result_time:.1f} s")

# Method 2: Using pdb for interactive debugging
import pdb

def stress_analysis(force, area, material_strength):
    """Analyze stress with pdb debugging capabilities"""

    # Uncomment the next line to set a breakpoint
    #pdb.set_trace()  # Execution will pause here when uncommented

    if area <= 0:
        print("ERROR: Area must be positive!")
        return None

    stress = force / area
    safety_factor = material_strength / stress

    # You can also use breakpoint() in Python 3.7+
    # breakpoint()  # Modern way to set breakpoint

    result = {
        'stress': stress,
        'safety_factor': safety_factor,
        'is_safe': safety_factor >= 2.0
    }

    return result

# Example usage (uncomment pdb.set_trace() above to see debugger in action)
analysis = stress_analysis(10000, 0.001, 250e6)  # 10kN on 1cm², steel
if analysis:
    print(f"Stress: {analysis['stress']/1e6:.1f} MPa")
    print(f"Safety factor: {analysis['safety_factor']:.2f}")
    print(f"Safe design: {analysis['is_safe']}")

# Problem 1 Solution Space
# Write your solution here

# Hint: Start by creating the materials dictionary
materials = {
    # Fill in the material properties
}

# Your code here...

# Problem 2 Solution Space
import numpy as np
import matplotlib.pyplot as plt

# Create time array
time = np.linspace(0, 10, 10)  # 10 time steps from 0 to 10 seconds

# Generate strain data (your code here)
# Hint: strain_data = np.random.normal(loc=0.001, scale=0.0002, size=(10, 5))

# Your analysis code here...

# Problem 3 Solution Space

def calculate_beam_properties(width, height, length, material="steel"):
    """
    Calculate basic beam properties

    Parameters:
    width, height, length: beam dimensions in meters
    material: material name (currently only steel implemented)

    Returns:
    dict: beam properties
    """
    # Your code here
    pass

def analyze_point_load(load, position, beam_length, E, I):
    """
    Analyze beam under point load

    Returns:
    dict: deflection and stress analysis
    """
    # Your code here
    pass

def safety_check(actual_stress, actual_deflection, beam_props):
    """
    Check beam safety factors

    Returns:
    dict: safety analysis results
    """
    # Your code here
    pass

# Test case
beam_width = 0.2      # 200 mm
beam_height = 0.3     # 300 mm
beam_length = 4.0     # 4 m
applied_load = 10000  # 10 kN
load_position = 1.5   # 1.5 m from left

# Your test code here...
